What is Flatline Spray Machine Capabilities?

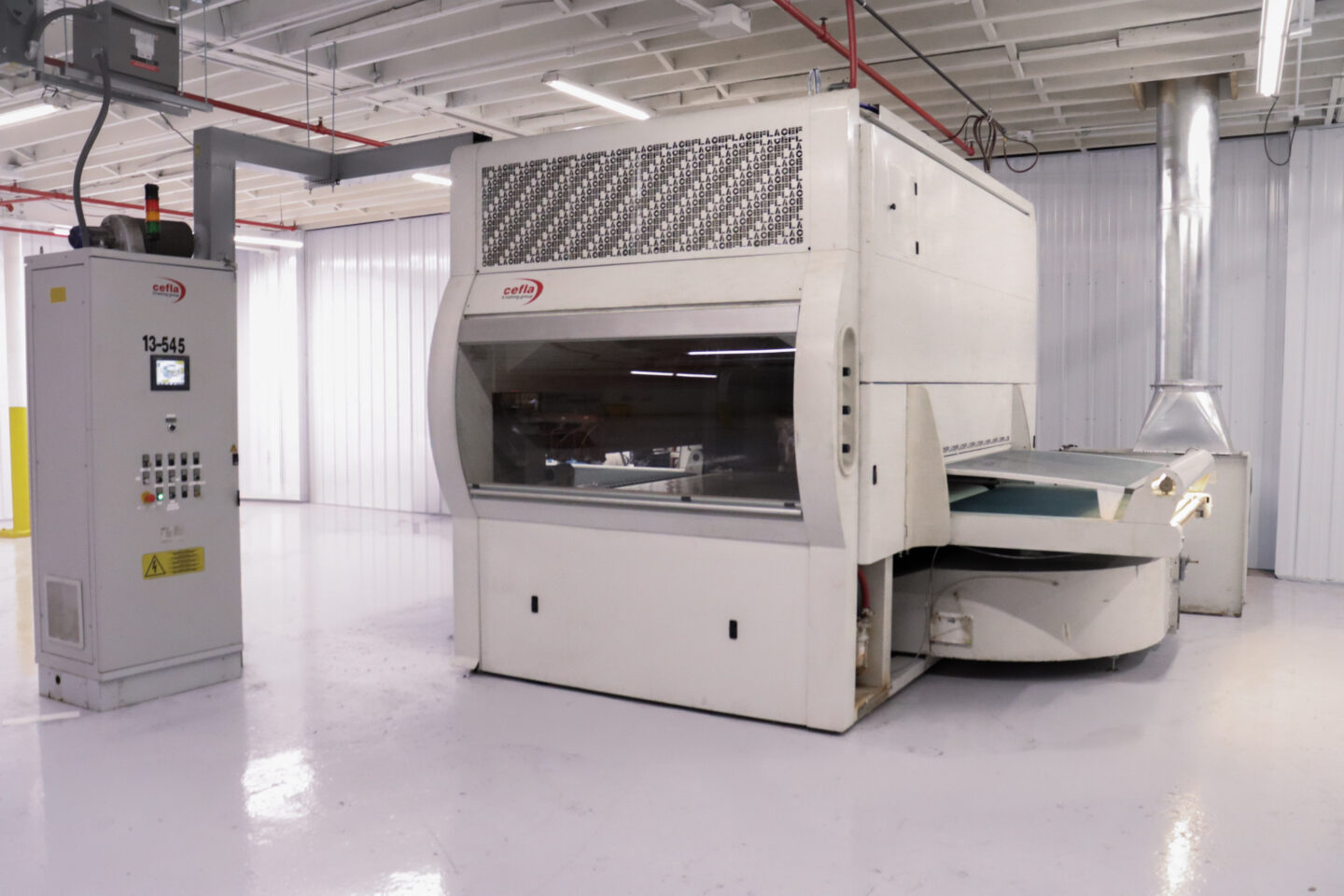

A flatline spray system is an industrial coating machine engineered to apply finishes evenly and continuously across flat or contoured materials as they move through a production line. These machines are commonly used to apply coatings such as paints, sealers, lacquers, UV finishes, and dielectric coatings with high precision and repeatability.
Flatline Spray Benefits
High Productivity
Better Coating Consistency
Customizable to Specific Part Needs
Reduce Material Waste
Reduced Labor Costs
Coating Application Process

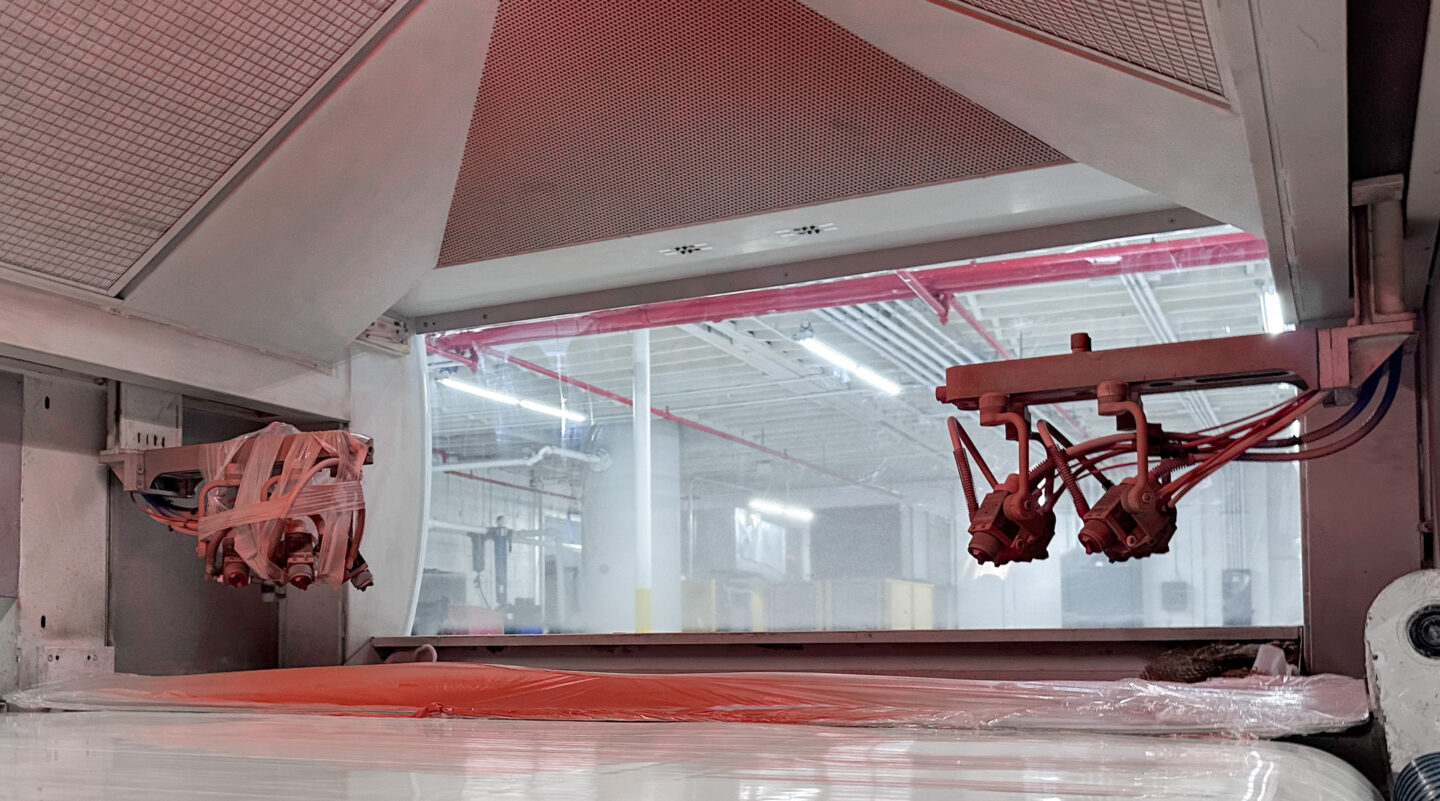

Parts are loaded onto a carbon-fiber conveyor belt, where a photodiode detects the substrate’s position and dimensions as it enters the production line. This information is used to precisely control oscillating spray guns within the spray chamber, ensuring accurate and consistent coating application across each part.

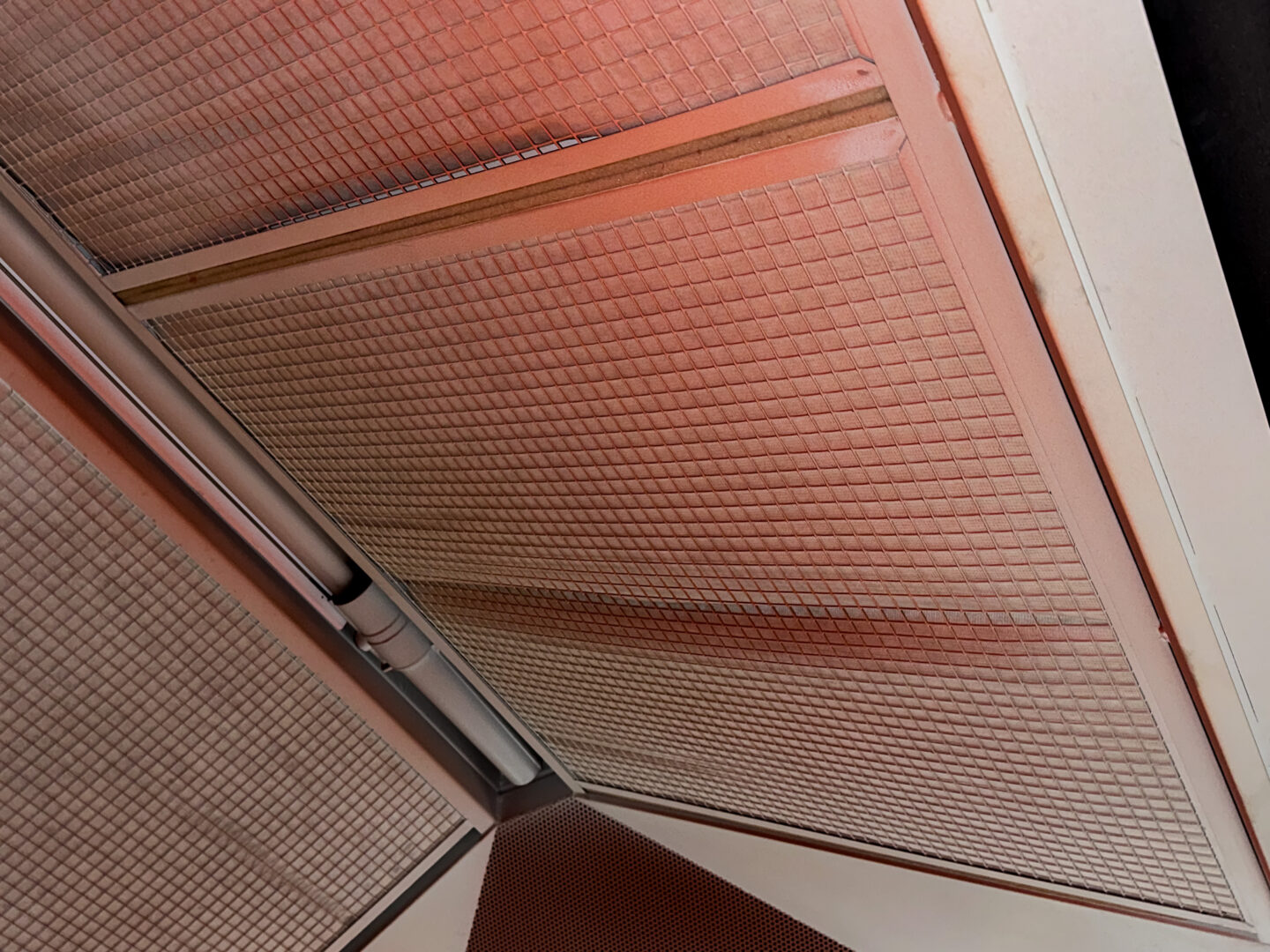

To maintain a clean operating environment and produce high-quality finishes, the flatline spray machine features an overspray filtration system that captures excess coating through a two-stage dry filter process. This helps minimize contamination while promoting uniform coating coverage. The system also includes a self-cleaning conveyor belt designed for both water-based and solvent-based coatings, allowing excess material to be recovered and reducing overall coating waste.
Dielectric
Dielectric coatings are the primary coatings applied by DECC using its flatline spray application system. These specialized coatings provide electrical insulation while protecting components from environmental and operational conditions. To learn more about dielectric coatings, DECC has a dedicated page that explores its benefits, applications, and performance characteristics in greater detail.
